Class representing the Enigma machine. More...

#include <EnigmaMachine.hpp>

Inheritance diagram for EnigmaMachine:

Collaboration diagram for EnigmaMachine:

Public Member Functions
	EnigmaMachine (ILogger *logger=nullptr)
	Default Constructor. Initializes a standard Enigma Machine (3 Rotors, standard Reflector).

	EnigmaMachine (const IAssetProvider &provider, std::string_view fileName, std::string_view assetPath="", ILogger *logger=nullptr)
	File-based Constructor using a specific Asset Provider.

	EnigmaMachine (std::string_view fileName, std::string_view assetPath="", ILogger *logger=nullptr)
	File-based Constructor. Initializes the machine by parsing a TOML configuration file from the filesystem.

	~EnigmaMachine () override

	EnigmaMachine (const EnigmaMachine &)=delete

EnigmaMachine &	operator= (const EnigmaMachine &)=delete

	EnigmaMachine (EnigmaMachine &&other) noexcept

EnigmaMachine &	operator= (EnigmaMachine &&other) noexcept

AlphabetIndex	keyTransform (AlphabetIndex input)
	Transforms the input key through the rotor box.

void	processBuffer (std::span< AlphabetIndex > buffer)
	Processes a buffer of alphabet indexes in-place.

void	setLogger (ILogger *logger)
	Sets the logger for the machine.

void	registerObserver (IEnigmaObserver *observer)
	Registers an observer to receive notifications.

void	removeObserver (IEnigmaObserver *observer)
	Removes an observer.

void	onRotorStepped (int rotorIndex, AlphabetIndex position) override
	Called when a rotor steps.

void	onCharEncrypted (char input, char output) override
	Called when a character is encrypted/decrypted.

Public Member Functions inherited from IEnigmaObserver
virtual	~IEnigmaObserver ()

Protected Member Functions
	EnigmaMachine (const EnigmaMachineConfig &config, ILogger *logger=nullptr)
	Internal constructor using the configuration struct. Accessible to tests and benchmarks, but hidden from the public API.

	EnigmaMachine (EnigmaMachineConfig &&config, ILogger *logger=nullptr)
	Internal constructor using the configuration struct (move version).

Private Attributes
std::unique_ptr< RotorBox >	rotorBox

std::unique_ptr< PlugBoard >	plugBoard

std::vector< IEnigmaObserver * >	observers

ILogger *	logger = nullptr

Detailed Description

Class representing the Enigma machine.

Complete Signal Flow

This class encapsulates the functionality of the Enigma machine, providing a simple interface for encryption while hiding the complexity of the rotors and plugboard.

Definition at line 31 of file EnigmaMachine.hpp.

Constructor & Destructor Documentation

◆ EnigmaMachine() [1/7]

EnigmaMachine::EnigmaMachine	(	const EnigmaMachineConfig &	config,
		ILogger *	logger = `nullptr`
	)

explicitprotected

Internal constructor using the configuration struct. Accessible to tests and benchmarks, but hidden from the public API.

Parameters

config	The machine configuration.
logger	Optional logger for event reporting.

Definition at line 74 of file EnigmaMachine.cpp.

References rotorBox.

◆ EnigmaMachine() [2/7]

EnigmaMachine::EnigmaMachine	(	EnigmaMachineConfig &&	config,
		ILogger *	logger = `nullptr`
	)

explicitprotected

Internal constructor using the configuration struct (move version).

Parameters

config	The machine configuration.
logger	Optional logger for event reporting.

Definition at line 81 of file EnigmaMachine.cpp.

References rotorBox.

◆ EnigmaMachine() [3/7]

EnigmaMachine::EnigmaMachine ( ILogger * logger = nullptr )

explicit

Default Constructor. Initializes a standard Enigma Machine (3 Rotors, standard Reflector).

Parameters

logger Optional logger for event reporting.

Definition at line 49 of file EnigmaMachine.cpp.

References defaultReflectorFile, defaultRotor1File, defaultRotor2File, defaultRotor3File, EnigmaConfigLoader::loadReflector(), EnigmaConfigLoader::loadRotor(), logger, plugBoard, resolveDefaultAssetPath(), and rotorBox.

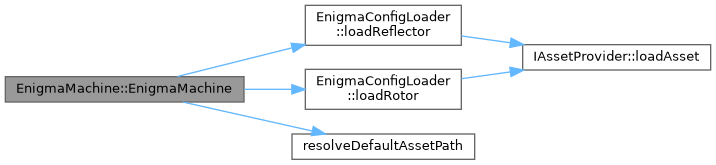

Here is the call graph for this function:

◆ EnigmaMachine() [4/7]

EnigmaMachine::EnigmaMachine	(	const IAssetProvider &	provider,
		std::string_view	fileName,
		std::string_view	assetPath = `""`,
		ILogger *	logger = `nullptr`
	)

File-based Constructor using a specific Asset Provider.

Parameters

provider	The asset provider to use for loading configuration.
fileName	The path to the TOML configuration file.
assetPath	Optional base directory for assets.
logger	Optional logger for event reporting.

Definition at line 70 of file EnigmaMachine.cpp.

◆ EnigmaMachine() [5/7]

EnigmaMachine::EnigmaMachine	(	std::string_view	fileName,
		std::string_view	assetPath = `""`,
		ILogger *	logger = `nullptr`
	)

explicit

File-based Constructor. Initializes the machine by parsing a TOML configuration file from the filesystem.

Parameters

fileName	The path to the TOML configuration file.
assetPath	Optional base directory for assets.
logger	Optional logger for event reporting.

Definition at line 89 of file EnigmaMachine.cpp.

◆ ~EnigmaMachine()

EnigmaMachine::~EnigmaMachine ( )

overridedefault

◆ EnigmaMachine() [6/7]

EnigmaMachine::EnigmaMachine ( const EnigmaMachine & )

delete

◆ EnigmaMachine() [7/7]

EnigmaMachine::EnigmaMachine ( EnigmaMachine && other )

noexcept

Definition at line 94 of file EnigmaMachine.cpp.

References removeObserver().

Here is the call graph for this function:

Member Function Documentation

◆ keyTransform()

AlphabetIndex EnigmaMachine::keyTransform ( AlphabetIndex input )

Transforms the input key through the rotor box.

Parameters

input The input key to be transformed.

Returns: AlphabetIndex The transformed output key.

The transformation follows the historic Enigma signal path:

Pass through Plugboard (Forward).
Pass through RotorBox (Rotors -> Reflector -> Rotors).
Pass through Plugboard (Reverse).

Definition at line 129 of file EnigmaMachine.cpp.

References onCharEncrypted(), plugBoard, and rotorBox.

Referenced by processBuffer(), and processMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ onCharEncrypted()

void EnigmaMachine::onCharEncrypted	(	char	input,
		char	output
	)

overridevirtual

Called when a character is encrypted/decrypted.

Parameters

input	The original input character.
output	The final output character.

Implements IEnigmaObserver.

Definition at line 166 of file EnigmaMachine.cpp.

References observers.

Referenced by keyTransform().

Here is the caller graph for this function:

◆ onRotorStepped()

void EnigmaMachine::onRotorStepped	(	int	rotorIndex,
		AlphabetIndex	position
	)

overridevirtual

Called when a rotor steps.

Parameters

rotorIndex	The index of the rotor (0 is the rightmost/fastest).
position	The new position of the rotor (0-25).

Implements IEnigmaObserver.

Definition at line 160 of file EnigmaMachine.cpp.

References observers.

◆ operator=() [1/2]

EnigmaMachine & EnigmaMachine::operator= ( const EnigmaMachine & )

delete

◆ operator=() [2/2]

EnigmaMachine & EnigmaMachine::operator= ( EnigmaMachine && other )

noexcept

Definition at line 105 of file EnigmaMachine.cpp.

◆ processBuffer()

void EnigmaMachine::processBuffer ( std::span< AlphabetIndex > buffer )

Processes a buffer of alphabet indexes in-place.

Parameters

buffer The span of characters to transform.

Definition at line 140 of file EnigmaMachine.cpp.

References keyTransform().

Here is the call graph for this function:

◆ registerObserver()

void EnigmaMachine::registerObserver ( IEnigmaObserver * observer )

Registers an observer to receive notifications.

Parameters

observer The observer to register.

Definition at line 151 of file EnigmaMachine.cpp.

References observers.

Referenced by runApplication().

Here is the caller graph for this function:

◆ removeObserver()

void EnigmaMachine::removeObserver ( IEnigmaObserver * observer )

Removes an observer.

Parameters

observer The observer to remove.

Definition at line 153 of file EnigmaMachine.cpp.

References observers.

Referenced by EnigmaMachine().

Here is the caller graph for this function:

◆ setLogger()

void EnigmaMachine::setLogger ( ILogger * logger )

Sets the logger for the machine.

Parameters

logger The logger to use.

Definition at line 144 of file EnigmaMachine.cpp.

References logger, and rotorBox.

Member Data Documentation

◆ logger

ILogger* EnigmaMachine::logger = nullptr

private

Definition at line 52 of file EnigmaMachine.hpp.

Referenced by EnigmaMachine(), and setLogger().

◆ observers

std::vector<IEnigmaObserver*> EnigmaMachine::observers

private

Definition at line 51 of file EnigmaMachine.hpp.

Referenced by onCharEncrypted(), onRotorStepped(), registerObserver(), and removeObserver().

◆ plugBoard

std::unique_ptr<PlugBoard> EnigmaMachine::plugBoard

private

Definition at line 50 of file EnigmaMachine.hpp.

Referenced by EnigmaMachine(), and keyTransform().

◆ rotorBox

std::unique_ptr<RotorBox> EnigmaMachine::rotorBox

private

Definition at line 49 of file EnigmaMachine.hpp.

Referenced by EnigmaMachine(), EnigmaMachine(), EnigmaMachine(), keyTransform(), and setLogger().

The documentation for this class was generated from the following files:

EnigmaMachine/include/EnigmaMachine.hpp
EnigmaMachine/src/EnigmaMachine.cpp
