Base class for transformers (rotors and reflectors). This class provides the interface for transforming positions and initializing transformation lookup tables (LUT). More...

#include <Transformer.hpp>

Inheritance diagram for Transformer:

Public Member Functions
	Transformer ()
	Constructor for the Transformer class. Initializes the transformer type to NotDefined.

virtual	~Transformer ()=default

virtual AlphabetIndex	transform (AlphabetIndex position, bool reverse=false) const =0

virtual AlphabetIndex	transformForward (AlphabetIndex position) const =0
	Transforms the given position forward.

virtual AlphabetIndex	transformReverse (AlphabetIndex position) const =0
	Transforms the given position in reverse.

virtual int	rotate ()=0

virtual void	setPosition (int)

virtual int	getPosition () const

int	sizeOfLookupTable () const
	Calculates the size of the transformation lookup table (LUT).

TransformerType	getType () const
	Returns the type of the transformer.

Protected Member Functions
void	setTransformValue (int row, int col, AlphabetIndex value)
	Sets a value in the transformation lookup table.

AlphabetIndex	getTransformValue (int row, int col) const
	Gets a value from the transformation lookup table.

void	fillTransformRow (int row, AlphabetIndex value)
	Fills a row of the transformation lookup table with a specific value.

void	copyTransformRow (int row, const std::array< AlphabetIndex, TRANSFORMER_SIZE > &values)
	Copies a whole array into a row of the transformation lookup table.

const std::array< AlphabetIndex, TRANSFORMER_SIZE > &	getTransformRow (int row) const
	Gets a read-only reference to a row in the transformation lookup table. Useful for using standard algorithms like std::find.

Protected Attributes
TransformerType	type

Private Attributes
std::array< std::array< AlphabetIndex, TRANSFORMER_SIZE >, 2 >	lookupTable

Detailed Description

Base class for transformers (rotors and reflectors). This class provides the interface for transforming positions and initializing transformation lookup tables (LUT).

Definition at line 24 of file Transformer.hpp.

Constructor & Destructor Documentation

◆ Transformer()

Transformer::Transformer ( )

Constructor for the Transformer class. Initializes the transformer type to NotDefined.

Definition at line 12 of file Transformer.cpp.

References type, and Undefined.

◆ ~Transformer()

virtual Transformer::~Transformer ( )

virtualdefault

Member Function Documentation

◆ copyTransformRow()

void Transformer::copyTransformRow	(	int	row,
		const std::array< AlphabetIndex, TRANSFORMER_SIZE > &	values
	)

protected

Copies a whole array into a row of the transformation lookup table.

Parameters

row	The row index to copy into.
values	The array of values to copy.

Definition at line 38 of file Transformer.cpp.

References lookupTable.

Referenced by Reflector::Reflector(), Reflector::Reflector(), Rotor::Rotor(), and Rotor::Rotor().

Here is the caller graph for this function:

◆ fillTransformRow()

void Transformer::fillTransformRow	(	int	row,
		AlphabetIndex	value
	)

protected

Fills a row of the transformation lookup table with a specific value.

Parameters

row	The row index to fill.
value	The value to fill the row with.

Definition at line 33 of file Transformer.cpp.

References lookupTable.

Referenced by Reflector::Reflector(), and Reflector::Reflector().

Here is the caller graph for this function:

◆ getPosition()

virtual int Transformer::getPosition ( ) const

inlinevirtual

Reimplemented in Rotor.

Definition at line 106 of file Transformer.hpp.

◆ getTransformRow()

const std::array< AlphabetIndex, TRANSFORMER_SIZE > & Transformer::getTransformRow ( int row ) const

protected

Gets a read-only reference to a row in the transformation lookup table. Useful for using standard algorithms like std::find.

Gets a read-only reference to a row in the transformation lookup table.

Parameters

row	The row index to retrieve.

Returns: const std::array<AlphabetIndex, TRANSFORMER_SIZE>& Reference to the row array.

Definition at line 45 of file Transformer.cpp.

References lookupTable.

Referenced by Rotor::initReverseLookupTable().

Here is the caller graph for this function:

◆ getTransformValue()

AlphabetIndex Transformer::getTransformValue	(	int	row,
		int	col
	)		const

protected

Gets a value from the transformation lookup table.

Parameters

row	The row index (0 for forward, 1 for reverse).
col	The column index (input position 0-25).

Returns: AlphabetIndex The value at the specified position.

Definition at line 28 of file Transformer.cpp.

References lookupTable.

Referenced by Reflector::transformForward(), Rotor::transformForward(), Reflector::transformReverse(), and Rotor::transformReverse().

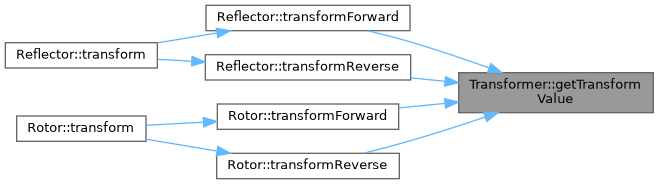

Here is the caller graph for this function:

◆ getType()

TransformerType Transformer::getType ( ) const

Returns the type of the transformer.

Returns: TransformerType Returns the type of the transformer (Rotor, Reflector, or NotDefined).

Definition at line 18 of file Transformer.cpp.

References type.

◆ rotate()

virtual int Transformer::rotate ( )

pure virtual

Implemented in Reflector, and Rotor.

◆ setPosition()

virtual void Transformer::setPosition ( int )

inlinevirtual

Reimplemented in Rotor.

Definition at line 105 of file Transformer.hpp.

◆ setTransformValue()

void Transformer::setTransformValue	(	int	row,
		int	col,
		AlphabetIndex	value
	)

protected

Sets a value in the transformation lookup table.

Parameters

row	The row index (0 for forward, 1 for reverse).
col	The column index (input position 0-25).
value	The value to set (output position).

Definition at line 23 of file Transformer.cpp.

References lookupTable.

Referenced by Rotor::initReverseLookupTable().

Here is the caller graph for this function:

◆ sizeOfLookupTable()

int Transformer::sizeOfLookupTable ( ) const

Calculates the size of the transformation lookup table (LUT).

Returns: int Returns the size of the transformation lookup table.

Definition at line 14 of file Transformer.cpp.

References lookupTable.

◆ transform()

virtual AlphabetIndex Transformer::transform	(	AlphabetIndex	position,
		bool	reverse = `false`
	)		const

pure virtual

this method is const-qualified, ensuring that the signal transformation does not modify the internal state of the transformer.

Implemented in Reflector, and Rotor.

◆ transformForward()

virtual AlphabetIndex Transformer::transformForward ( AlphabetIndex position ) const

pure virtual

Transforms the given position forward.

Parameters

position The current position (0 to TRANSFORMER_SIZE - 1).

Returns: AlphabetIndex The transformed position (0 to TRANSFORMER_SIZE - 1).

This method defines the primary signal path from right to left through the transformer.

Implemented in Reflector, and Rotor.

◆ transformReverse()

virtual AlphabetIndex Transformer::transformReverse ( AlphabetIndex position ) const

pure virtual

Transforms the given position in reverse.

Parameters

position The current position (0 to TRANSFORMER_SIZE - 1).

Returns: AlphabetIndex The transformed position (0 to TRANSFORMER_SIZE - 1).

This method defines the return signal path from left to right through the transformer.

Implemented in Reflector, and Rotor.

Member Data Documentation

◆ lookupTable

std::array<std::array<AlphabetIndex, TRANSFORMER_SIZE>, 2> Transformer::lookupTable

private

Definition at line 26 of file Transformer.hpp.

Referenced by copyTransformRow(), fillTransformRow(), getTransformRow(), getTransformValue(), setTransformValue(), and sizeOfLookupTable().

◆ type

TransformerType Transformer::type

protected

Definition at line 29 of file Transformer.hpp.

Referenced by Reflector::Reflector(), Reflector::Reflector(), Rotor::Rotor(), Rotor::Rotor(), Transformer(), and getType().

The documentation for this class was generated from the following files:

RotorBox/include/Transformer.hpp
RotorBox/src/Transformer.cpp
